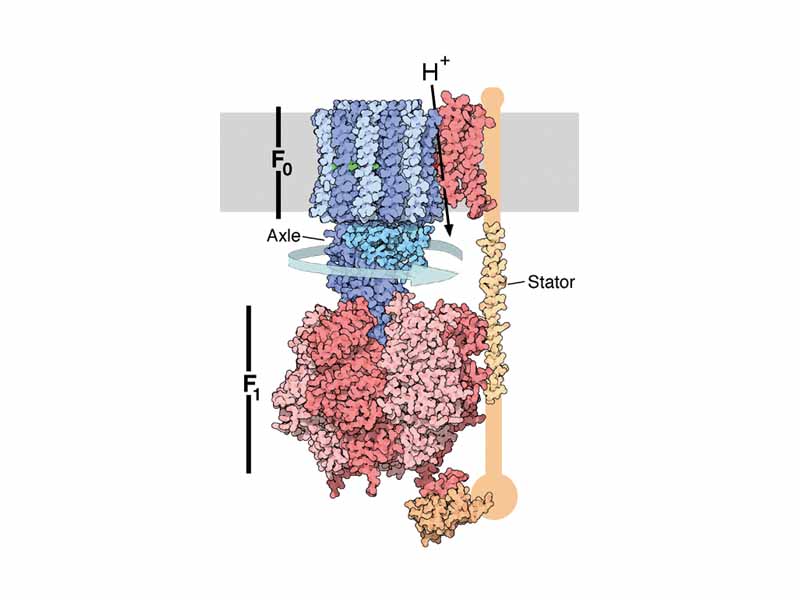

Structure of ATP synthase, the F0 proton channel and rotating stalk are shown in blue, the F1 synthase domain in red and the membrane in grey.

Structure of ATP synthase, the F0 proton channel and rotating stalk are shown in blue, the F1 synthase domain in red and the membrane in grey.

In oxidative metabolism, the electron pairs liberated through the oxidation of glucose do not pass directly to O2. The direct oxidants are the coenzymes of various oxidoreductases. The reduced forms of these coenzymes, NADH and FADH2, then transfer these electrons into the electron transport system which is located on the mitochondrial matrix. ATP is formed through an energy coupling process that begins with reoxidation of NADH and FADH2. The electrons passing from NADH and FADH2 travel through a sequential oxidation-reduction process involving a long series of redox centers located within a series of protein complexes in the inner mitochondrial membrane. As electrons pass along the chain, protons are expelled from the mitochondrial matrix by various mechanisms. The free energy stored in the resulting concentration and electric potential gradient (proton motive force) drives the synthesis of ATP as the protons flow back to the mitochondrial matrix through the protein complex ATP synthase.

WikiPremed Resources

Biosynthesis of Macromolecules Images
Image gallery for study with links to larger teaching JPEGs for classroom presentation

Question Drill for Oxidative Phosphorylation
Conceptual Vocabulary Self-Test

Basic Terms Crossword Puzzle

Basic Puzzle Solution

Learning Goals


Understand how the structure of a mitochondrion supports its role in oxidative metabolism.

Be prepared to describe the path of electrons through the electron transport chain in the mitochondrion.

Be able to describe the structural changes undergone by the electron carriers NADH and FADH2 in their oxidation-reduction cycle in terms that explain their suitability as electron carriers.

Understand how flavins, iron-sulfur complexes, quinones and hemes transfer electrons within the electron transport chain.

Know the steps of the ubiquinone cycle in electron transfer with Q-cytochrome c oxidoreductase.

Comprehend the process by which the electrochemical gradient from the inter-membrane space into the matrix in mitochondria drives the activity of ATP synthase.

Suggested Assignments

The question server contains a large, general section that covers a number of topics from metabolism including glycolysis, the citric acid cycle, and oxidative phosphorylation. After warming up with the terminology complete the crossword puzzle for energy metabolism. Here is the solution to the puzzle.

Read pp. 81-86 in ExamKrackers Biology I. Perform practice items 65-72 on pg. 87. (This is a combined treatment of the citric acid cycle and oxidative phosphorylation).

Review the web resources for oxidative phosphorylation.

Conceptual Vocabulary for Oxidative Phosphorylation

Terminology for glycolysis, citric acid cycle, and oxidative phosphorylation.
Basic Terms
Aerobic organism
An aerobic organism is an organism that has an oxygen based metabolism.
Anaerobic organism
An anaerobic organism is any organism that does not require oxygen for growth.
Adenosine triphosphate
Adenosine triphosphate is a multifunctional nucleotide that is most important as a molecular currency of intracellular energy transfer.
Citric acid cycle
The citric acid cycle, also known as the tricarboxylic acid cycle or Krebs cycle, is a series of enzyme-catalysed chemical reactions of central importance in all living cells that use oxygen as part of cellular respiration.
Glucose, a monosaccharide, is an important carbohydrate in biology, used by the living cell as a source of energy and metabolic intermediates. It is one of the main products of photosynthesis and starts cellular respiration in both prokaryotes and eukaryotes.
Glycolysis is the initial process of most carbohydrate catabolism serving the functions of producing ATP and NADH, pyruvate for the citric acid cycle, and a variety of other compounds which are important for biosynthesis.
Pyruvic acid
Pyruvic acid is an alpha-keto acid which plays an important role in biochemical processes. It is an output of glycolysis.
Acetyl-CoA is an important molecule in metabolism, used in many biochemical reactions. Its main use is to convey the carbon atoms within the acetyl group to the Krebs Cycle to be oxidized for energy production.
Fermentation is respiration under anaerobic conditions with no external electron acceptor.
Ethanol fermentation
Ethanol fermentation is the biological process by which sugars such as glucose, fructose, and sucrose, are converted into ethanol and carbon dioxide.
Electron transport chain
An electron transport chain associates electron carriers and mediating biochemical reactions that produce ATP.
Outer mitochondrial membrane
The outer mitochondrial membrane encloses the entire mitochondrion.
Intermembrane space
The intermembrane space is the region between the inner membrane and the outer membrane of a mitochondrion or a chloroplast.
A kinase, alternatively known as a phosphotransferase, is a type of enzyme that transfers phosphate groups from high-energy donor molecules, such as ATP, to specific target molecules.
Phosphorylation is the addition of a phosphate group to a protein molecule or a small molecule.
Glucose 6-phosphate, also known as Robison ester, is glucose sugar phosphorylated on carbon 6. Yhe vast majority of glucose entering a cell will become phosphorylated in this way.
Fructose 6-phosphate
Fructose 6-phosphate (also known as the Neuberg ester) is fructose sugar phosphorylated on carbon 6. The beta-D-form of this compound is very common in cells.
Nicotinamide adenine dinucleotide
Nicotinamide adenine dinucleotide is an important coenzyme found in cells, which plays key roles as a carrier of electrons and a participant in metabolic redox reactions, as well as in cell signaling.
L-lactate is constantly produced in animals from pyruvate in a process of fermentation during normal metabolism and exercise.
Lactic acid fermentation
Lactic acid fermentation is a form of anaerobic respiration that occurs in some bacteria and animal cells in the absence of oxygen.
Adenosine monophosphate
Adenosine monophosphate is an ester of phosphoric acid with the nucleoside adenosine. AMP consists of the phosphate group, the pentose sugar ribose, and the nucleobase adenine.
Substrate-level phosphorylation
Substrate-level phosphorylation is a type of chemical reaction that results in the formation of ATP by the direct transfer of a phosphate group to ADP from a reactive intermediate.
Pyruvate decarboxylation
The pyruvate decarboxylation reaction links the metabolic pathways glycolysis and the citric acid cycle.
Chemiosmosis is the diffusion of ions across a selectively-permeable membrane, often specifically with reference to the generation of ATP by the movement of hydrogen ions across a membrane during cellular respiration.
Cristae are the internal compartments formed by the inner membrane of a mitochondrion.
Mitochondrial matrix
The matrix of the mitochondrion is the compartment containing soluble enzymes that catalyze the oxidation of pyruvate and other small organic molecules.
Inner mitochondrial membrane
The inner mitochondrial membrane forms internal compartments known as cristae, which allow greater space for the proteins such as cytochromes to function properly and efficiently.
Proton pump
A proton pump is an integral membrane protein that is capable of moving protons across the membrane of a cell, mitochondrion, or other subcellular compartment.
Phosphofructokinase 1
Phosphofructokinase 1 is a kinase enzyme which acts upon Fructose 6-phosphate. It is the most important regulatory enzyme of glycolysis.
ATP synthase
An ATP synthase is a general term for an enzyme that can synthesize adenosine triphosphate (ATP) from adenosine diphosphate (ADP) and inorganic phosphate by utilizing some form of energy.
Oxidative phosphorylation
Oxidative phosphorylation is a metabolic pathway that uses energy released by the oxidation of nutrients to produce ATP.
Cytochromes are generally membrane-bound hemoproteins that contain heme groups and carry out electron transport.
Dihydroxyacetone phosphate
Dihydroxyacetone phosphate (DHAP) is one of the two products of breakdown of fructose 1,6-phosphate in glycolysis, along with glyceraldehyde 3-phosphate.
Glyceraldehyde 3-phosphate
Glyceraldehyde 3-phosphate is one of the two products of breakdown of fructose 1,6-phosphate in glycolysis, along with dihydroxyacetone phosphate.
Phosphoenolpyruvate (PEP) has the highest energy phosphate bond found in living organisms. It is formed in glycolysis by the action of the enzyme enolase on 2-phosphoglycerate.
Adenylate kinase
Adenylate kinase is a phosphotransferase enzyme that catalyzes the production of ATP from ADP.
Glucokinase is an enzyme that facilitates phosphorylation of glucose to glucose-6-phosphate.
Glucose isomerase
Glucose isomerase is an enzyme that catalyzes the conversion of glucose into fructose.
Flavin adenine dinucleotide (FAD
The electron carrier, flavin adenine dinucleotide accomodates two equivalents of hydrogen when it is reduced in the citric acid cycle during aerobic respiration.
Malate-aspartate shuttle
The malate-aspartate shuttle is a biochemical system for translocating electrons produced during glycolysis across the impermeable inner membrane of the mitochondrion for oxidative phosphorylation in eukaryotes.
Mitochondrial shuttle
The mitochondrial shuttles are systems used to transport reducing agents across the inner mitochondrial membrane.
Thermogenin is an uncoupling protein found in the mitochondria of brown adipose tissue, used to generate heat by non-shivering thermogenesis.
In glycolysis and photosynthesis, 1,3-Bisphosphoglycerate (1,3BPG) is a transitional stage between glycerate 3-phosphate and glyceraldehyde 3-phosphate during the fixation or reduction, respectively, of carbon dioxide.
2-Phosphoglycerate (2PG) is a glyceric acid which serves as the substrate in the ninth step of glycolysis. It is catalyzed by enolase into phosphoenolpyruvate (PEP), the penultimate step in the conversion of glucose to pyruvate.
Cori cycle
The Cori cycle refers to the cycling of lactate produced by red blood cells and muscle (during anaerobic respiration) back into glucose.
The anion, the salts, and the esters of pyrophosphoric acid are called pyrophosphates.
A hexokinase is an enzyme that phosphorylates a six-carbon sugar, a hexose, to a hexose phosphate.
Enolase, or 2-phospho-D-glycerate hydrolyase, is an enzyme that participates in glycolysis, catalyzing the conversion of 2-phosphoglycerate to phosphoenolpyruvate, the penultimate step in the conversion of glucose to pyruvate.
Pyruvate kinase
Pyruvate kinase is an enzyme involved in glycolysis, catalyzing the transfer of a phosphate group from phosphoenolpyruvate (PEP) to ADP, yielding a pyruvate molecule and producing one molecule ATP.
Pyruvate dehydrogenase complex
Pyruvate dehydrogenase complex (PDC) is a complex of three enzymes that transform pyruvate into acetyl-CoA.
Oxaloacetate is formed in the citric acid cycle upon oxidation of L-malate, and reacts with Acetyl-CoA to form citrate, catalysed by citrate synthase.
Citrate synthase
The enzyme citrate synthase is a pace-maker enzyme, controlling the first committed step of the Krebs cycle.
Cytochrome c oxidase
The enzyme cytochrome c oxidase is the last protein in the electron transport chain. It receives an electron from each of four cytochrome c molecules, and transfers them to one oxygen molecule.
Coenzyme Q - cytochrome c reductase
Coenzyme Q - cytochrome c reductase catalyzes the reduction of cytochrome c by oxidation of coenzyme Q and the concomitant pumping of 4 protons from the mitochondrial matrix to the intermembrane space.
NADH dehydrogenase
NADH dehydrogenase is an enzyme located in the inner mitochodrial membrane that catalyzes the transfer of electrons from NADH to coenzyme Q.
Beta oxidation
Beta oxidation is the process by which fatty acids, in the form of Acyl-CoA molecules, are broken down in the mitochondria and/or in peroxisomes to generate Acetyl-CoA, the entry molecule for the Krebs Cycle.
Ketosis is a stage in metabolism occurring when the liver converts fat into fatty acids and ketone bodies which can be used by the body for energy.
Advanced terms that may appear in context in MCAT passages
Ketone bodies
Ketone bodies are three water soluble compounds that are produced as by-products when fatty acids are broken down for energy. They are used as a source of energy in the heart and brain.
Entner-Doudoroff Pathway
The Entner-Doudoroff pathway in some prokaryotes describes a series of reactions that catabolize glucose to pyruvate using a different set of enzymes from those used in either glycolysis or the pentose phosphate pathway.
Aldolase A
Aldolase A is an enzyme which catalyses one of the aldol reactions of glycolysis in which fructose 1,6-bisphosphate is broken down into glyceraldehyde 3-phosphate and dihydroxyacetone phosphate.
Triosephosphate isomerase
Triosephosphate isomerase is an enzyme in glycolysis that catalyzes the reversible interconversion of the triose phosphate isomers dihydroxyacetone phosphate and D-glyceraldehyde 3-phosphate.
Phosphoglycerate kinase
Phosphoglycerate kinase is a transferase enzyme used in the seventh step of glycolysis, transfering a phosphate group from 1,3-biphosphoglycerate to ADP, forming ATP and 3-Phosphoglycerate.
Phosphoglycerate mutase
Phosphoglycerate mutase is an enzyme that catalyzes step 8 of glycolysis: the internal transfer of a phosphate group from C-3 to C-2 which results in the conversion of 3-phosphoglycerate to 2-phosphoglycerate.
Isocitrate is formed from citrate in the citric acid cycle with the help of the enzyme aconitase
Aconitase is an enzyme that catalyses the stereo-specific isomerization of citrate to isocitrate via cis-aconitate in the tricarboxylic acid cycle, a non-redox-active process.
Isocitrate dehydrogenase
Isocitrate dehydrogenase is an enzyme which participates in the citric acid cycle, catalyzing the third step of the cycle: the oxidative decarboxylation of isocitrate, producing alpha-ketoglutarate and carbon dioxide while converting NAD+ to NADH.
Succinate - coenzyme Q reductase
Succinate-coenzyme Q reductase is an enzyme complex bound to the inner mitochondrial membrane. This is the only enzyme that participates in both the citric acid cycle and the mitochondrial electron transport chain
Malate dehydrogenase
Malate dehydrogenase is an enzyme in the citric acid cycle that catalyzes the conversion of malate into oxaloacetate (using NAD+) and vice versa.
Iron-sulfur cluster
An iron-sulfur cluster is a structural motif found in a variety of metalloproteins, such as the ferredoxins, as well as NADH dehydrogenase and Coenzyme Q - cytochrome c reductase, and nitrogenase.
Electron-transferring-flavoprotein dehydrogenase
Electron-transferring-flavoprotein dehydrogenase is an enzyme that transfers electrons from electron-transferring flavoprotein in the mitochondrial matrix to the ubiquinone pool in the inner mitochondrial membrane.
Acyl CoA dehydrogenase
Acyl CoA dehydrogenase is the enzyme used to catalyze the first step of beta-oxidation in fatty acid metabolism.
Succinyl coenzyme A synthetase
In the citric acid cycle, succinyl coenzyme A synthetase catalyzes the formation of succinate and coenzyme-A, a 4-carbon metabolite, from succinyl-CoA.
Fumarase is an enzyme involved in the Krebs Cycle that catalyzes the hydration of fumarate to L-malate.
The proto-mitochondrion is the ancestral bacterial endosymbiont from which all mitochondria are thought to be derived.
Flavin mononucleotide
Flavin mononucleotide is derived from riboflavin and functions as cofactor of various oxidoreductases including NADH dehydrogenase.
Enoyl-CoA hydratase
Enoyl-CoA hydratase is the enzyme used to catalyze the second step of beta-oxidation in fatty acid metabolism.
3-Hydroxyacyl CoA dehydrogenase
The third step of beta oxidation in fatty acid metablism is the oxidation of L-3-hydroxyacyl CoA by NAD+, which is catalyzed by 3-Hydroxyacyl CoA dehydrogenase.
Acetyl-CoA C-acyltransferase
The final step of beta oxidation in fatty acid metablism is the cleavage of 3-ketoacyl CoA by the thiol group of another molecule of CoA, which is catalyzed by Acetyl-CoA C-acyltransferase.
