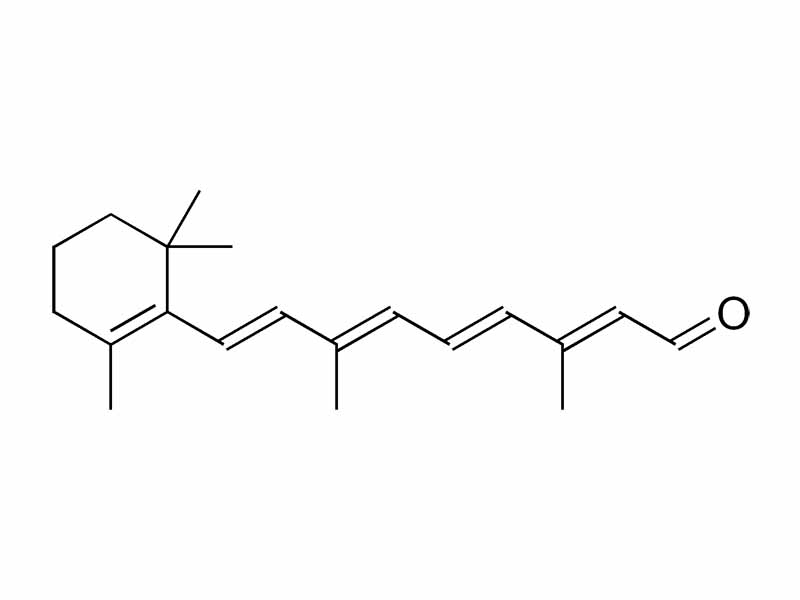

Retinal

Many pigments, such as retinal, make use of conjugated electron systems to absorb visible light.

A conjugated system is a system of connected p-orbitals with delocalized electrons in molecules with alternating single and multiple bonds, which in general may lower the overall energy of the molecule and increase stability. Aromaticity is a special type of conjugation describing a conjugated system in a planar ring where the number of π delocalized electrons that is even, but not a multiple of 4. That is, 4n + 2 number of π electrons, where n=0, 1, 2, 3, and so on. This is known as Hückel's Rule. Aromaticity allows for the electrons in the molecule's pi system to be completely delocalized around the ring. Aromaticitiy increases the molecule's stability to a greater degree than normal conjugation.

From the role of stable conjugated intermediates in enzyme reactions, to the in behavior of electron transporters such as NADH or ubiquinone, to the absorption qualities of pigments, concepts from conjugation and aromaticity come up again and again within biochemistry. For this reason, this is an area of particular focus within organic chemistry for the new MCAT.

WikiPremed Resources

Conjugated Species Mechanisms
Mechanisms and explanations from the Organic Mechanisms Pocketbook

Aromatic Compounds Mechanisms
Mechanisms and explanations from the Organic Mechanisms Pocketbook

Conjugated &#pi; Systems and Aromaticity Images
Image gallery for study with links to larger teaching JPEGs for classroom presentation

Question Drill for Conjugation and Aromaticity
Conceptual Vocabulary Self-Test

Basic Terms Crossword Puzzle

Basic Puzzle Solution

Learning Goals

Proficiency

Understand the role of resonance in promoting the stability of conjugated and aromatic systems.

Be able to recall the conditions for aromaticity including Hückel's Rule.

Know how to determine whether or not a polycyclic or heterocyclic compound as well as a cyclic ion is aromatic from the structural formula. Be able to recognize the most prominent heterocyclic aromatic compounds such as furan, imidazole, pyridine, or pyrolle.

Understand the basis of Hückel's Rule by means of the model of benzene given by molecular orbital theory.

Be able to describe from a molecular orbital theory perspective why the absorption spectrum of conjugated systems shifts to longer wavelength compared to unconjugated systems.

Suggested Assignments

Conceptual Vocabulary for Conjugation and Aromaticity

Aromaticity
Aromaticity is a chemical property in which a conjugated ring of unsaturated bonds, lone pairs, or empty orbitals exhibit a stabilization stronger than would be expected by the stabilization of conjugation alone.
Conjugated system
A chemically conjugated system is a system of atoms covalently bonded with alternating single and multiple bonds in a molecule of an organic compound.
Delocalized electron
Delocalized electrons are electrons in a molecule that are not associated with a single atom or to a covalent bond.
Pi bond
Pi bonds are covalent chemical bonds where two lobes of one involved electron orbital overlap two lobes of the other involved electron orbital. Only one of the orbital's nodal planes passes through both of the involved nuclei.
Diene
Dienes are hydrocarbons which contain two double bonds.
Benzene
Benzene is an organic aromatic chemical compound whose molecules contain six carbons and six hydrogens.
Hückel's rule
Hückel's rule estimates whether a planar ring molecule will have aromatic properties. It was first expressed succinctly as the 4n+2 rule by von Doering in 1951.
Aromatic ring current
An aromatic ring current is an effect observed in aromatic molecules if a magnetic field is directed perpendicular to the plane of the aromatic system.
Heterocyclic compound
Heterocyclic compounds are organic compounds that contain a ring structure containing atoms in addition to carbon, such as sulfur, oxygen or nitrogen, as part of the ring.
Pigment
Often compounds with extended conjugated systems, a pigment is a material that changes the color of light it reflects as the result of selective color absorption.
Stacking
Stacking in supramolecular chemistry refers to a stacked arrangement of aromatic molecules, which interact through aromatic interactions.
Aryl
In the context of organic molecules, aryl refers to any functional group or substituent derived from a simple aromatic ring.
Coplanar
A set of points in space is coplanar if the points all lie in the same geometric plane.
Naphthalene
Naphthalene is a crystalline, aromatic, white, solid hydrocarbon, best known as the primary ingredient of mothballs.
Polyene
Polyenes are poly-unsaturated organic compounds that contain one or more sequences of alternating double and single carbon-carbon bonds.
Polycyclic aromatic hydrocarbon
Polycyclic aromatic hydrocarbons are chemical compounds that consist of fused aromatic rings and do not contain heteroatoms or carry substituents.
Cross-conjugation
Cross-conjugation is a special type of conjugation in a molecule, when in a set of three pi bonds only two pi-bonds interact with each other by conjugation, the third one is excluded from interaction.
Toluene
Toluene, also known as methylbenzene or phenylmethane, is a clear, water-insoluble liquid with the typical smell of paint thinners.
Xylene
Xylene refers to a group of 3 benzene derivatives which encompasses ortho-, meta-, and para- isomers of dimethyl benzene.
Advanced terms that may appear in context in MCAT passages
Hückel} method
The Hückel method is a very simple LCAO MO Method for the determination of energies of molecular orbitals of pi electrons in conjugated hydrocarbon systems, such as ethene, benzene and butadiene.
Homoaromaticity
Homoaromaticity in organic chemistry is found in conjugated cyclic systems that are able to skip a part of the ring as opposed to regular aromaticity.
Cyclobutadiene
Cyclobutadiene is the smallest [n]-annulene, an extremely unstable hydrocarbon, failing Hückel's rule, because its ring has 4 pi-electrons, and 4 is not twice an odd number.
Antiaromatic
Antiaromatic or pseudoaromatic molecules are cyclic systems containing alternating single and double bonds, where the pi electron energy of antiaromatic compounds is higher than that of its open-chain counterpart.
PAH world hypothesis
The PAH world hypothesis is a biological hypothesis that proposes that polycyclic aromatic hydrocarbons provided a means for a pre-RNA World basis for the origin of life.
